Active Part Revision Service

Active Part Document Review

The AutoCAD files provided by the customer are reviewed to find issues in the construction and assembly documents mainly:

  • Materials
  • Dimensions
  • Tables and drawings
  • Bores
  • Fittings

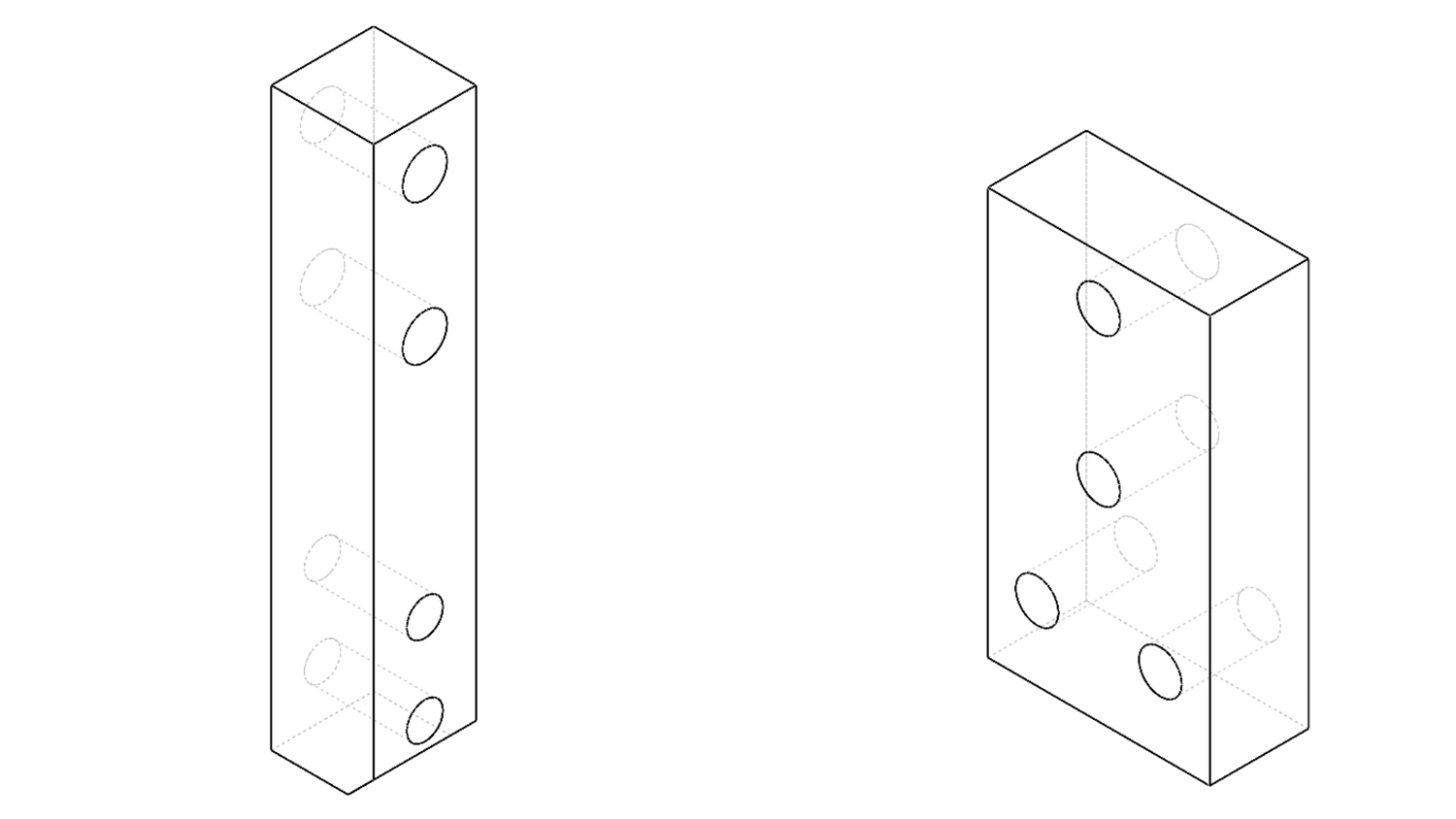

Leads Support Modeling

Using the information provided, the supports for connections are modeled in SolidWorks, helping in the finding issues process.

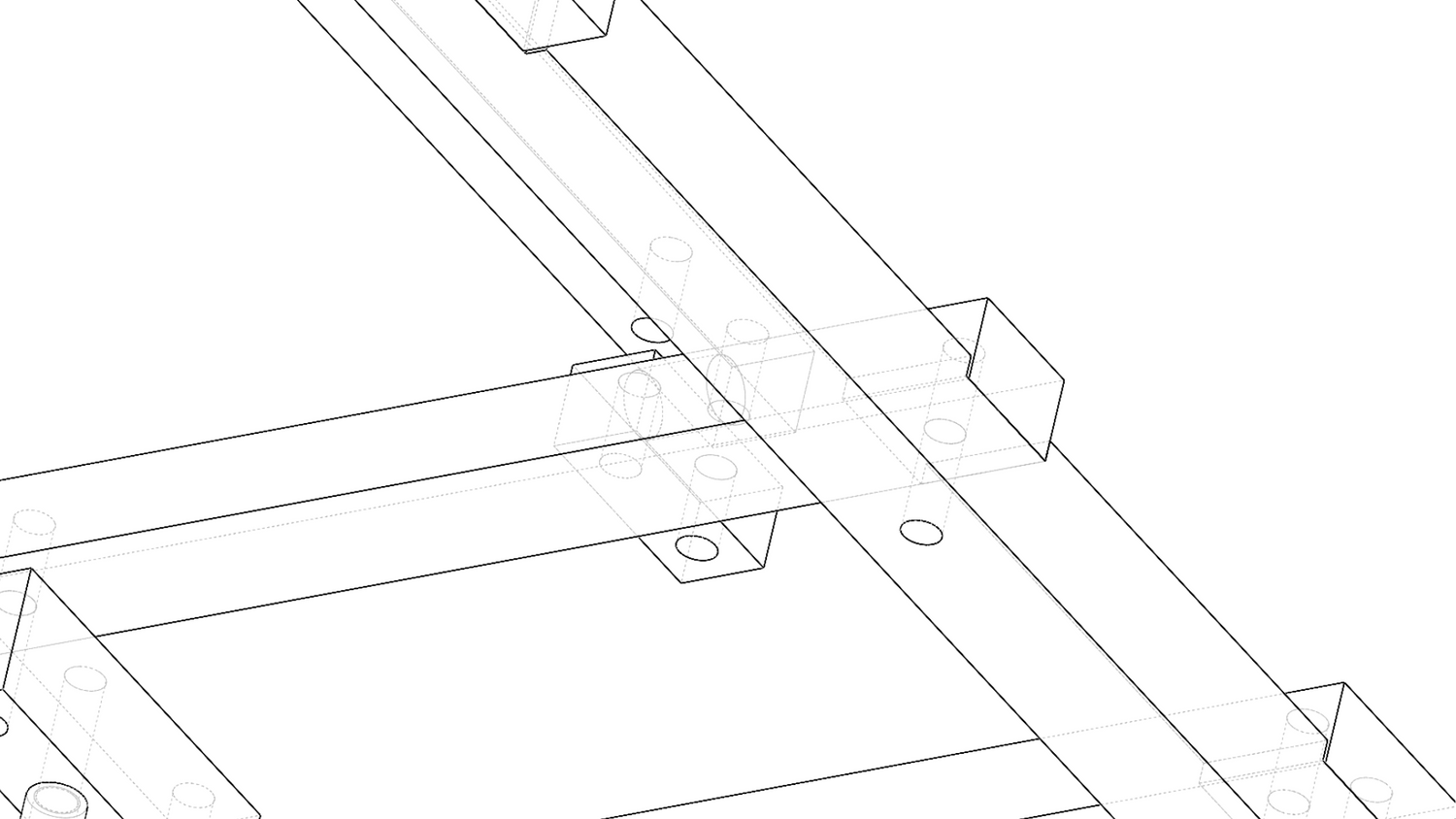

Rack leads Assembly

The next step is searching for issues in the main assembly, by joining all the support pieces is easy to know if it fits correctly and if all the bores are aligned

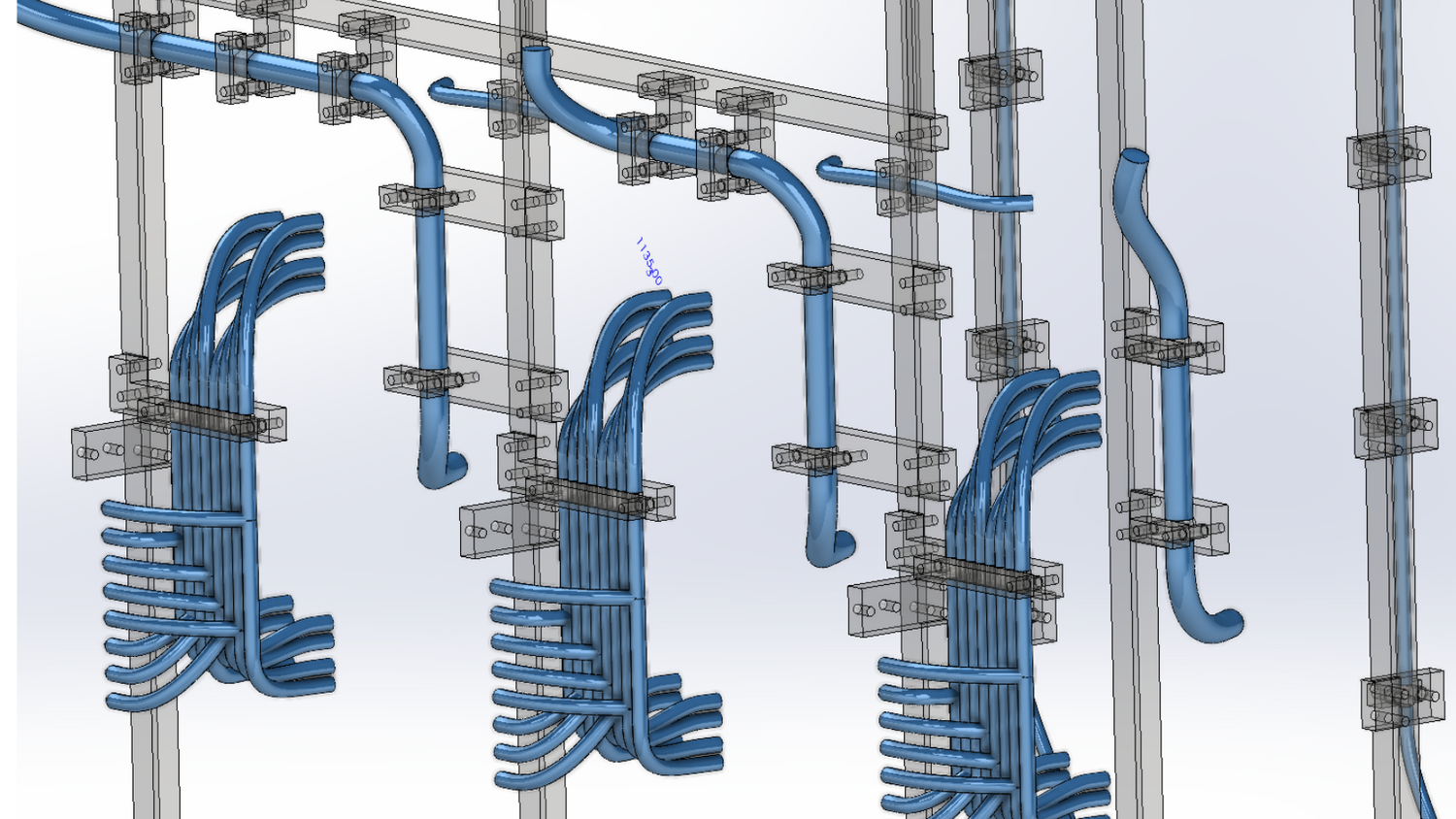

Connections

Once the supports are assembled and reviewed, the lines of connection between coils and LTC or DTC are created and merged with the main model, then, the length of each cable can me measured and the dielectric distances can be evaluated.

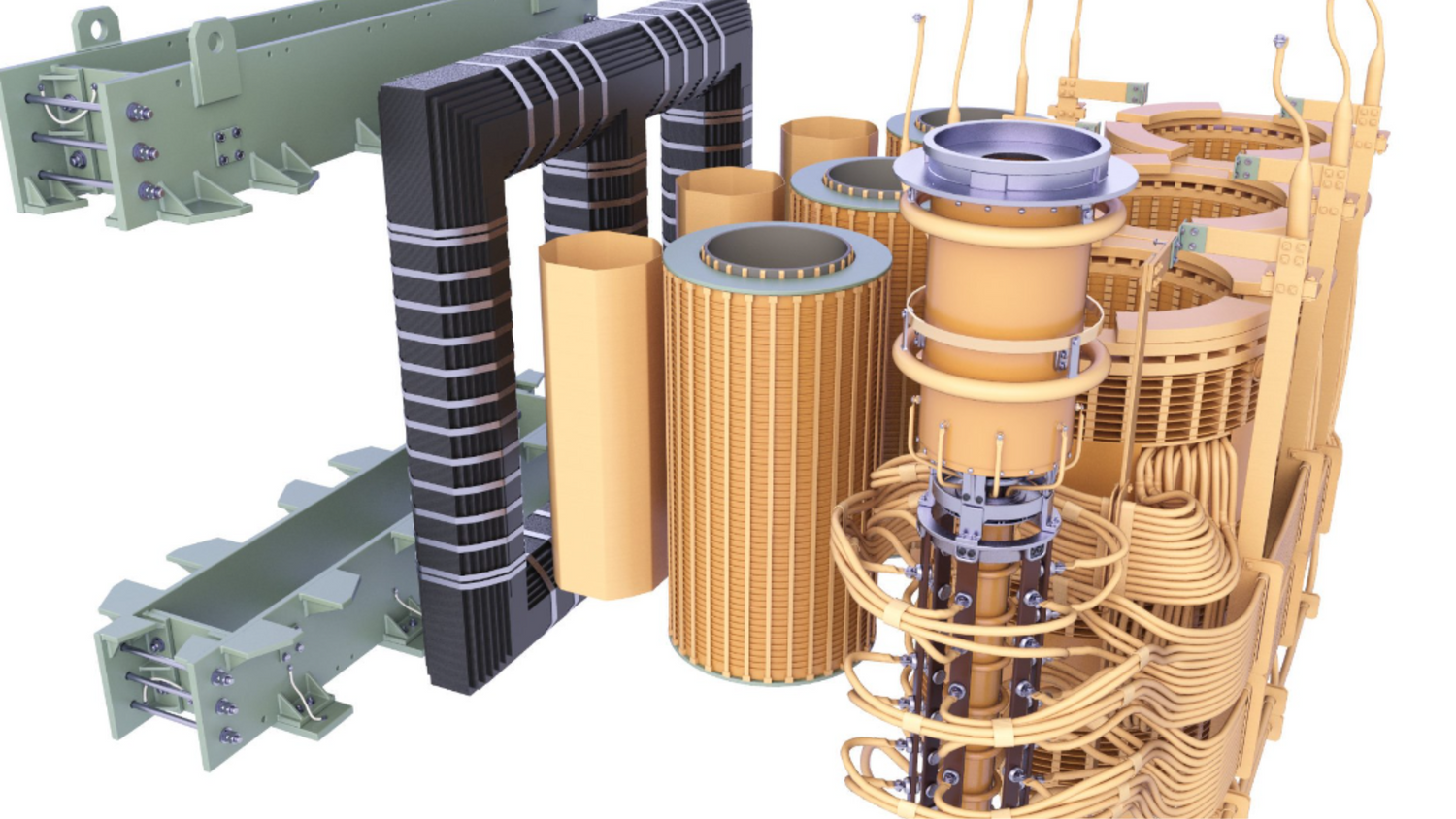

Assembly Review

Reviewer for the complete core and coil assembly, prior or after release the information to the shop floor.

  • Coil block assembly (all coil wires must be in the correct position).
  • Core block assembly.
  • Structures (HV, LV & LTC) 3D Dielectric Room (1,150kV BIL)
  • Current density (15,000Amp)
  • Position (LTC, DETC, Bushings, Fixing Devices)
  • Each lead in 3D Model
  • Frames.
  • Connectors
  • Density of current
  • Connection transformer type(Dyn1, YNyn0+d1, etc)

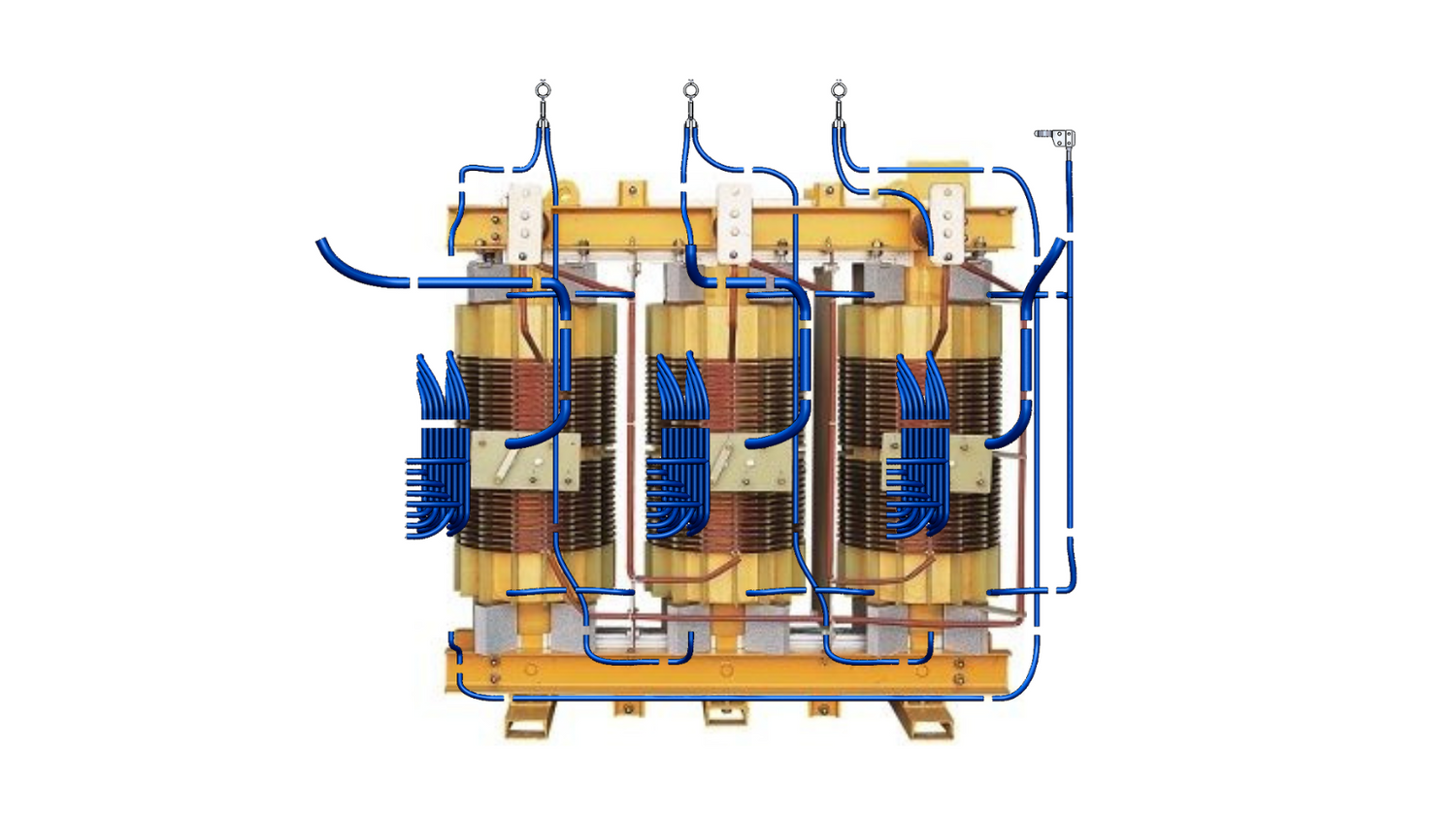

Virtual Model

And the end of the revision you will have a power transformer fully assembled as a prototype with a much lower cost.

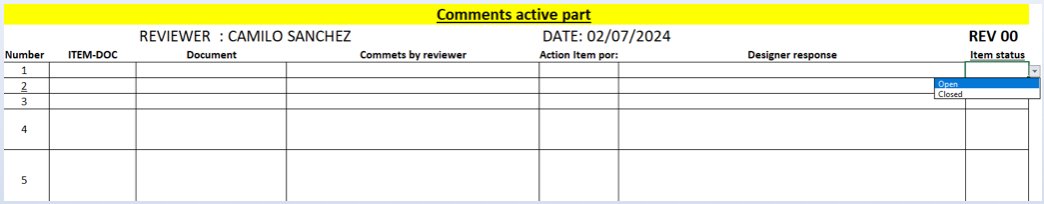

Control of Revisions Document

  • We have saved thousand of dollars finding out the issues that you may have in shop floor.
  • We have saved many hour of time
  • Our customers have met the deadline for delivery to the owner of the transformers.
  • ASK FOR REVISION OF THE TANK ASSEMBLY
